Fischer cables

Aivon makes 24-pin Fischer cables for connecting breakout boxes to cryostats. The standard cable has the following properties:

  • Fischer S105A093-80+ connectors on each end
  • Cable 16x2x0.14 shielded twisted pair cable (24 wires in use) with pairs between pins 1-2, 3-4, and so on. One common shield around the pairs. Please ask for individually shielded cables.
  • Custom lengths
  • By default, no ferrites attached around the cable. Customer can use clamp-type ferrites or request for solid ferrite beads

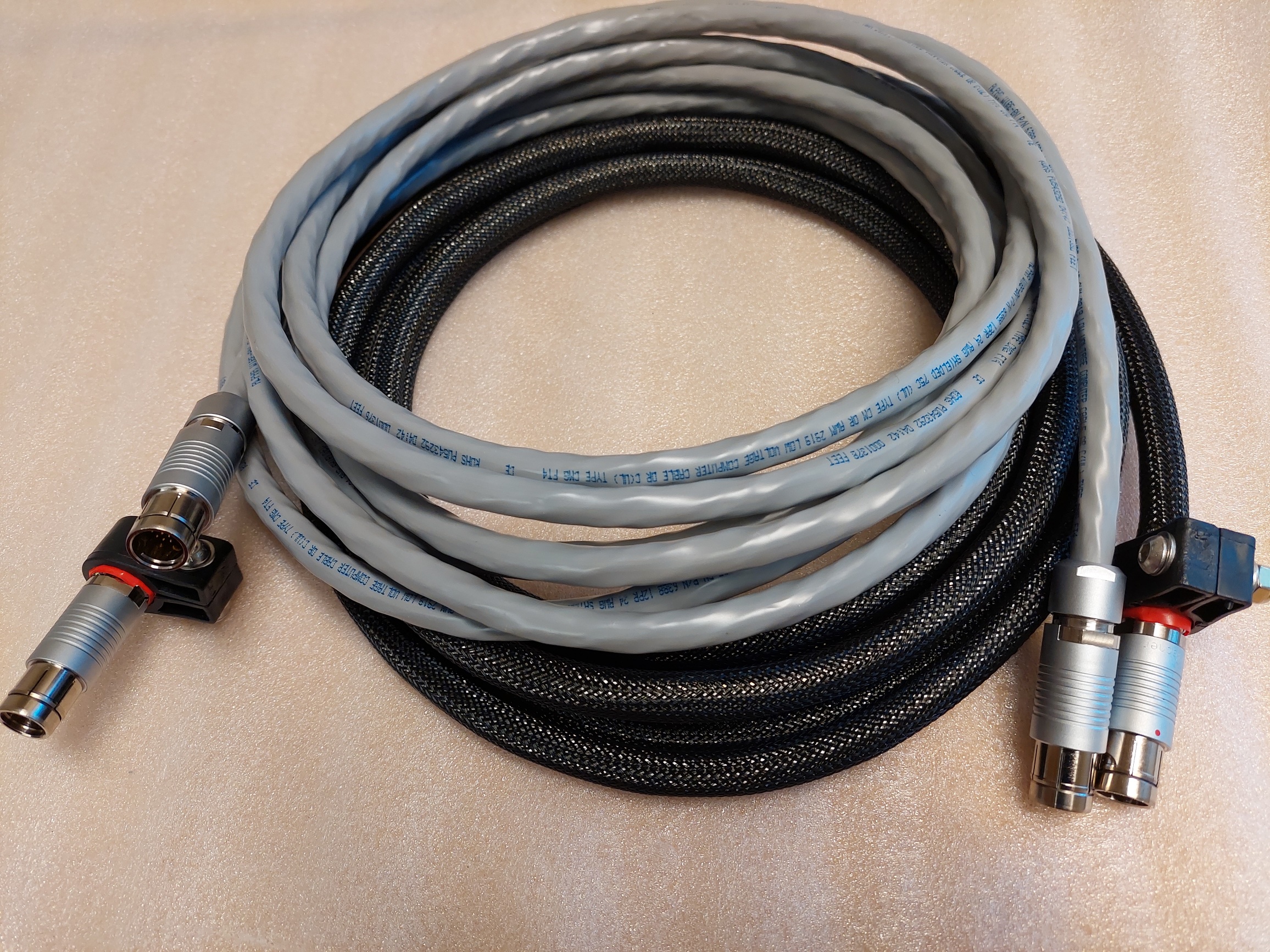

3.5m long cable
Cable markings
